How to Choose a Compact Hydraulic Cylinder?

Choosing a Compact Hydraulic Cylinder is rarely a matter of selecting the smallest available model. It requires practical judgment, accurate calculations, and a clear understanding of the machine’s working environment. A cylinder fitted into a narrow frame may look ideal, yet limited space can increase side loading, seal wear, and maintenance difficulty.

Dr. Jan Ivantysyn, a respected hydraulic systems researcher and author, offers a useful principle: “A cylinder must be selected as part of the complete system, not in isolation.” This guidance matters when evaluating bore size, stroke length, operating pressure, mounting style, and rod strength. A compact design should deliver the required force without operating continuously at its maximum rating. That margin protects performance when oil temperature changes or loads become unpredictable.

Begin with the real load, not an estimated average. Measure the available installation space, including hose connections and service access. Check whether the rod moves in a straight line. Even a small alignment error can create damaging side forces. Consider corrosion, dust, cycle frequency, and the expected temperature range. Stainless components may suit outdoor equipment, while hardened rods can better withstand repeated industrial cycles.

Specifications alone do not guarantee a reliable choice. A catalog may not reveal every installation weakness. I have seen compact assemblies fail because technicians ignored access for seal replacement. That mistake is easy to repeat. Therefore, compare manufacturer test data, seal materials, warranty terms, and technical support before approval. The best Compact Hydraulic Cylinder is not merely short. It is correctly matched, serviceable, and dependable under actual working conditions.

Table of Contents [Hide]

1 Define the Application Requirements for a Compact Hydraulic Cylinder

2 Compare Cylinder Types, Materials, and Mounting Configurations

3 Calculate Bore Size, Stroke Length, Force, and Operating Pressure

4 Evaluate Space Limits, Performance Factors, and Environmental Conditions

5 Verify Compatibility, Safety Standards, Maintenance, and Service Life

Define the Application Requirements for a Compact Hydraulic Cylinder

How to Choose a Compact Hydraulic Cylinder?

Define the Application Requirements for a Compact Hydraulic Cylinder

Start with the load, stroke, and available installation space. Measure the exact distance between mounting points, not the space shown on a drawing. A cylinder may fit on paper but interfere with a guard or moving linkage. Record the required pushing and pulling forces separately. Retraction often needs less force, yet its speed can change under load.

Check operating pressure, cycle frequency, movement speed, and expected service life. A machine lifting 500 kilograms occasionally has different needs from one cycling every ten seconds. Note the fluid type, temperature range, dust, moisture, and possible side loads. Side loading can damage the rod and seals quickly. Use a guided mounting arrangement when the cylinder cannot carry a perfect axial load.

I usually leave a practical force margin after calculating resistance and friction. However, an oversized cylinder may slow the system and consume unnecessary space. That trade-off deserves review. I have seen clean calculations fail because the real linkage angle was ignored. Test the cylinder through the full motion range, including startup and stopping points. Confirm port orientation, mounting hardware, seal compatibility, and maintenance access before approval. A short trial under realistic conditions can reveal vibration, uneven travel, or unexpected heat.

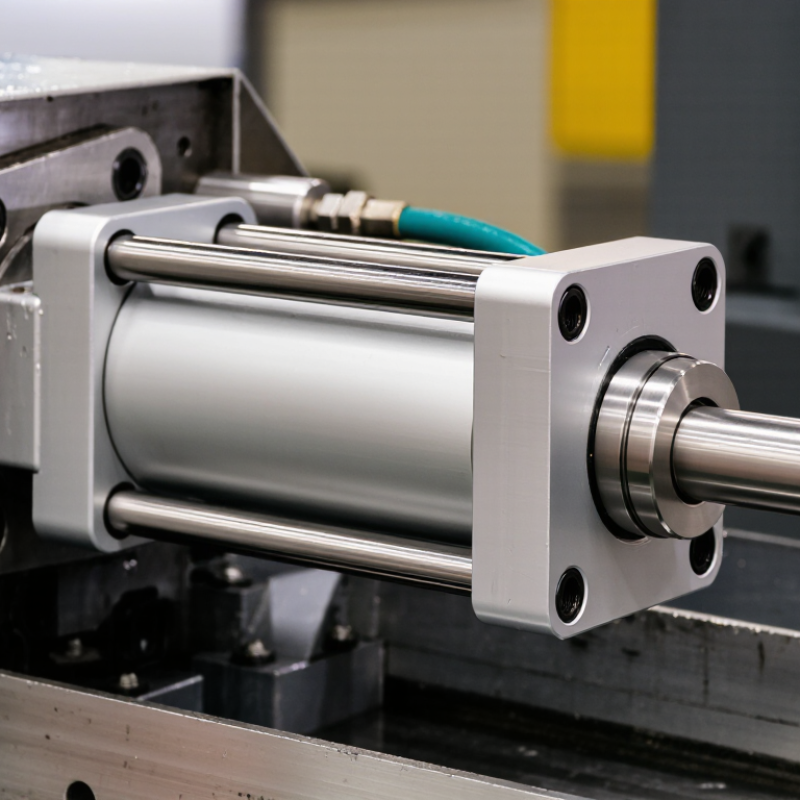

Compare Cylinder Types, Materials, and Mounting Configurations

How to Choose a Compact Hydraulic Cylinder?

Choosing a compact hydraulic cylinder starts with its working motion. A single-acting cylinder uses pressure in one direction and returns with a spring or external load. It suits simple clamping or lifting tasks. A double-acting cylinder controls extension and retraction, making it better for precise positioning. Check required force, stroke length, operating pressure, and available space before comparing models. A short body can still create alignment problems when the rod extends far.

Material selection affects service life. Carbon steel provides strength and reasonable cost for many indoor machines. Stainless steel handles moisture and washdown areas more reliably. Protective coatings can help, but damaged surfaces may corrode quickly. Seals must match the hydraulic fluid, temperature, and pressure. Small details matter.

Mounting style changes how loads travel through the machine. Clevis mounts allow controlled pivoting, while flange mounts provide firm support at the cylinder end. Trunnion mounts can reduce side loading when rotation is expected. Foot mounts are practical, but poor alignment can bend the rod. I once treated a mounting bracket as “close enough,” and the cylinder later showed uneven wear. That mistake was avoidable. Use spherical bearings or guided mechanisms when side loads may occur. Also inspect the rod during full extension, not only when retracted. Test the selected configuration under realistic load cycles, because catalog dimensions rarely reveal every installation weakness.

How to Choose a Compact Hydraulic Cylinder?

Compare cylinder types, materials, and mounting configurations

How to read the chart: The relative scores summarize common engineering trade-offs on a 1–5 scale, where 5 indicates a stronger advantage for compact-cylinder selection. Actual performance depends on bore size, stroke, pressure, speed, load, sealing system, and operating environment.

Materials: Welded and tie-rod cylinders commonly use carbon-steel or ductile-iron bodies. Piston rods are typically hardened or chrome-plated carbon steel for wear resistance; stainless steel is preferred where corrosion resistance is important.

Mounting configurations: Clevis mounts accommodate angular movement, flange mounts provide rigid axial support, trunnion mounts suit pivoting applications, and foot mounts are appropriate when the cylinder is fixed to a rigid base. Correct alignment is essential to reduce side loading and premature seal wear.

Scores represent typical industry design characteristics rather than a manufacturer-specific rating. Confirm pressure, stroke, mounting loads, and material compatibility against the final cylinder specification.

Calculate Bore Size, Stroke Length, Force, and Operating Pressure

Choosing a compact hydraulic cylinder starts with the load, not the available space. Measure the required pushing force in newtons, then add friction and a practical safety margin. Force equals pressure multiplied by piston area. For a target force, the bore diameter can be estimated with this formula: bore = √(4F ÷ πP) Use consistent units. A 10,000-newton load at 10 MPa needs about a 36-millimeter theoretical bore. Real systems need more.

Stroke length should match the machine’s actual movement. Measure from fully retracted to fully extended positions. Add only the clearance needed for alignment and end cushioning. Excessive stroke increases bending risk and installation space. I have seen compact cylinders fail early because the stroke was correct, but the rod operated at an angle. Side loads are often overlooked.

Operating pressure must stay below the cylinder’s rated pressure and the circuit’s relief-valve setting. Check pressure spikes, especially when a load stops suddenly. On the rod side, calculate force using the annular area, not the full piston area. This difference can be substantial. A thicker rod may reduce buckling, but it also lowers pulling force. My first sizing estimate once ignored seal friction, so the cylinder stalled under a cold start. Recheck calculations with the lowest expected temperature, actual pump pressure, mounting limits, and available space. A small cylinder is not automatically the right cylinder.

Evaluate Space Limits, Performance Factors, and Environmental Conditions

Choosing a compact hydraulic cylinder starts with the space around it, not the catalog dimension. Measure retracted length, mounting width, port access, rod travel, and maintenance clearance. A cylinder may fit the machine but block a hose bend or sensor. I have seen this mistake cause early side loading. Leave practical clearance.

Performance must match the real duty cycle. Calculate force from pressure and piston area, then check speed, buckling risk, stroke frequency, and load direction. The U.S. Department of Energy’s hydraulic-system guidance indicates that leakage, throttling, and heat can waste roughly 20–30% of input energy in poorly optimized systems. That figure makes seal quality and flow control important, even in a small actuator. Choose adequate force, not excessive force. Oversizing can increase mass, oil demand, and response time.

Environmental conditions can change the selection completely. ISO 4413 emphasizes safe hydraulic-system design, including pressure control, hose routing, and energy isolation. For outdoor equipment, verify temperature range, corrosion resistance, rod protection, and ingress exposure under IEC 60529. Dusty sites need better wiper protection. Wet sites need suitable coatings and seals. In cold weather, oil viscosity may slow movement noticeably. I would also inspect contamination data from the maintenance team, because laboratory assumptions often look cleaner than the machine. Some selections remain uncertain until real temperature, shock, and mounting misalignment are measured.

How to Choose a Compact Hydraulic Cylinder? - Evaluate Space Limits, Performance Factors, and Environmental Conditions

Reference Configuration	Bore (mm)	Rod (mm)	Stroke (mm)	Approx. Retracted Length (mm)	Push Force at 160 bar (kN)	Pull Force at 160 bar (kN)	Space and Performance Suitability	Environmental Design Considerations
Ultra-compact light-duty	25	12	50	150	7.85	6.04	Best where installation space is severely limited and loads are moderate. Suitable for compact clamps, small gates, positioning mechanisms, and light material handling.	Use a protected rod, suitable wiper, and corrosion-resistant external surfaces where dust, splash water, or occasional outdoor exposure is expected.
Compact general-purpose	32	16	100	220	12.87	9.65	A balanced choice when moderate force and a short overall envelope are required. Appropriate for automation slides, compact lifting devices, and machine tooling.	For humid or washdown areas, specify seals and surface protection compatible with water, cleaning chemicals, and the hydraulic fluid in use.
High-force compact	40	20	150	290	20.11	15.08	Provides substantially higher force while remaining relatively short. Suitable for pressing, locking, compact lifting, and higher-load positioning applications.	Add rod protection or bellows where abrasive particles, welding spatter, mud, or frequent contamination could damage the rod seal.
Maximum force within the group	50	25	200	360	31.42	23.56	Choose this size when load capacity is more important than the smallest possible envelope. Confirm mounting clearance, buckling resistance, and machine-frame stiffness.	For outdoor or corrosive service, consider stainless or plated rod materials, protected mounting hardware, drainage, and seals rated for the operating temperature.

Engineering reference notes: Push force is calculated as bore area × 16 N/mm². Pull force is calculated as (bore area − rod area) × 16 N/mm², corresponding to 160 bar theoretical pressure. Actual output can be lower because of friction, pressure losses, speed requirements, cushioning, and load geometry. Approximate retracted lengths are envelope estimates and must be verified against the selected mounting style and cylinder design.

Selection Factor	What to Check Before Selection	Practical Recommendation
Available space	Measure the retracted envelope, side clearance, port location, mounting width, and access for maintenance.	Allow additional clearance for hose routing, fittings, sensor brackets, and rod movement.
Required force	Include load weight, friction, acceleration, mechanical leverage, and a suitable design margin.	Do not size the cylinder from static load alone; verify both extension and retraction forces.
Stroke and speed	Confirm usable stroke, cycle time, flow rate, cushioning needs, and end-of-stroke impact.	Use external stops or position control when the cylinder should not absorb repeated structural impacts.
Rod stability	Check compression loading, unsupported rod length, side loading, alignment, and mounting articulation.	Use guides or spherical mounts to prevent side loads; perform a buckling check for long or heavily compressed strokes.
Environment	Evaluate temperature, water, dust, chemicals, salt spray, abrasive particles, and cleaning methods.	Match seal materials, wiper design, rod coating, and corrosion protection to the actual operating environment.

Verify Compatibility, Safety Standards, Maintenance, and Service Life

Choosing a compact hydraulic cylinder begins with compatibility. Measure the mounting points, rod diameter, stroke, and retracted length carefully. Confirm the required pressure, flow rate, and hydraulic fluid type. A cylinder may fit physically but fail under side loading. I compare machine drawings with the actual equipment because old installations often contain spacers or modified brackets. That extra inspection prevents expensive surprises.

Safety standards deserve equal attention. Request documented pressure tests, material information, and load ratings from the supplier. Check whether the design meets applicable regional and industry requirements. Add suitable guarding, hose protection, and a pressure relief device when necessary. Never choose a cylinder by maximum pressure alone. Dynamic loads, buckling, corrosion, and sudden stops can reduce safe performance. I once underestimated vibration in a compact assembly. The cylinder worked, but its mounting hardware loosened repeatedly. That mistake changed my inspection routine.

Tips: Keep the rod clean and lightly protected. Inspect seals, fittings, and mounting bolts during scheduled maintenance. Watch for slow movement, oil traces, unusual noise, or rising operating temperature. Record stroke cycles and repair dates. Replace damaged hoses promptly. Service life depends on alignment and operating conditions, not just the advertised cycle rating. Recheck the design after modifications, because a small frame change can create a large side load.
